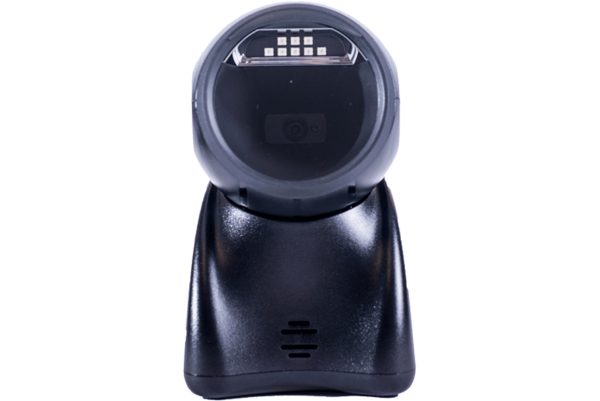

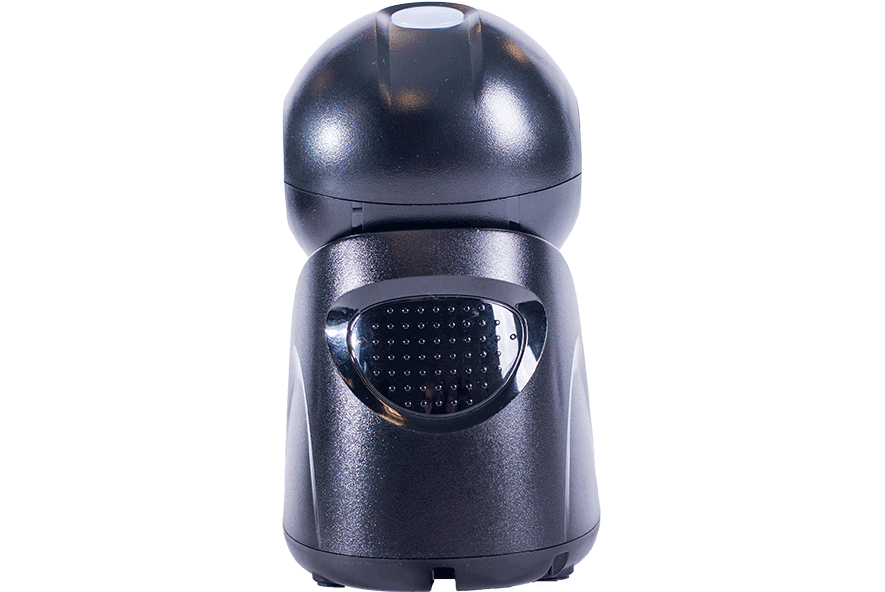

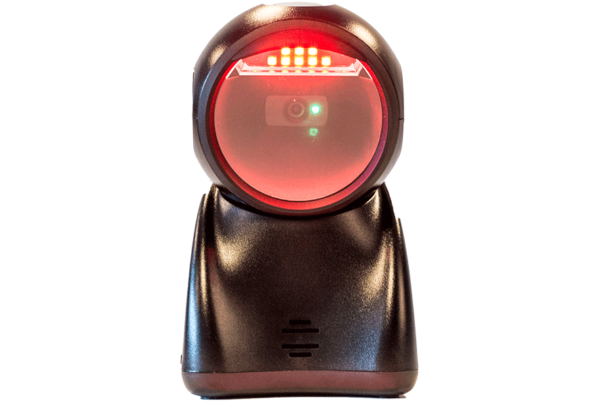

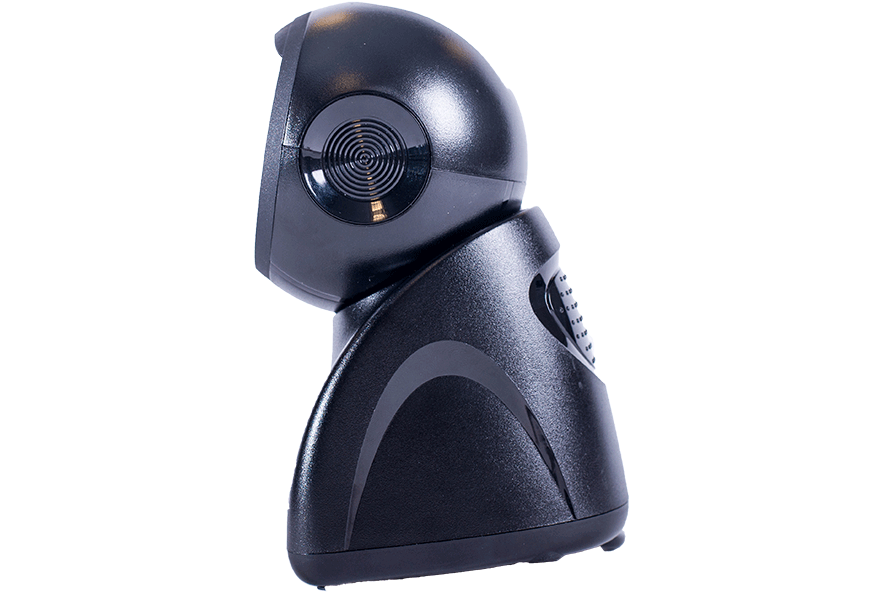

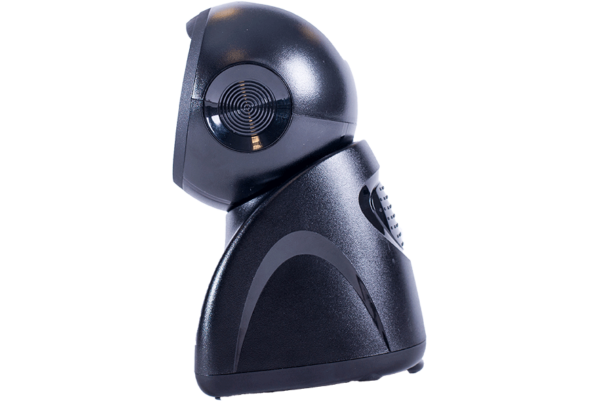

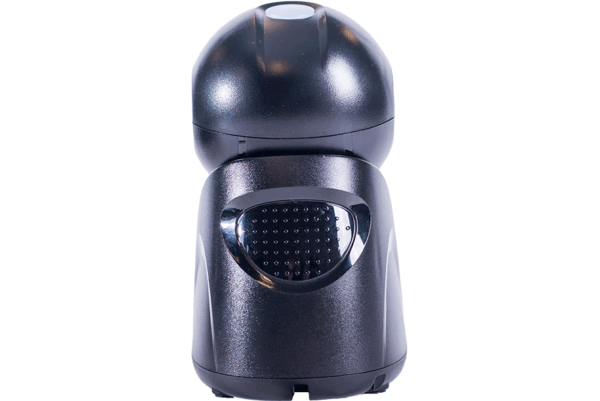

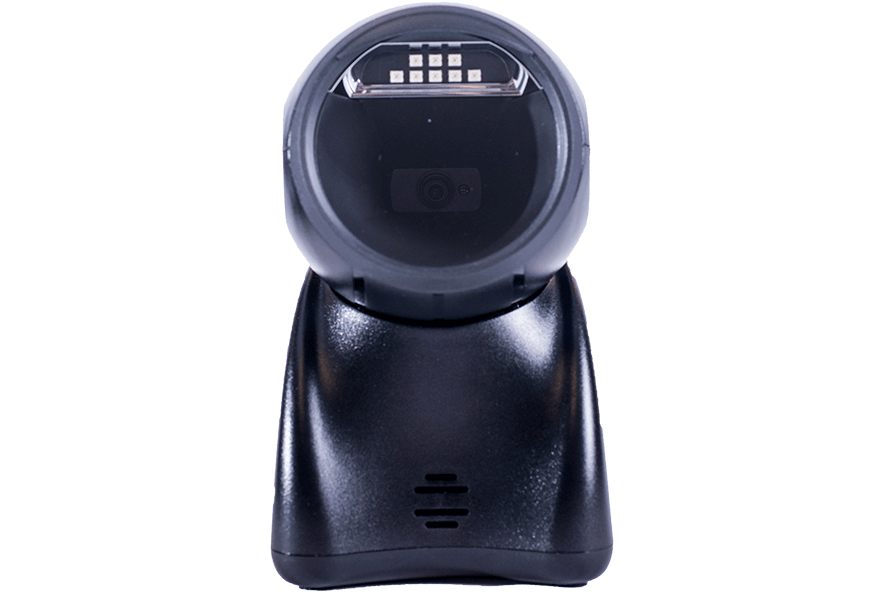

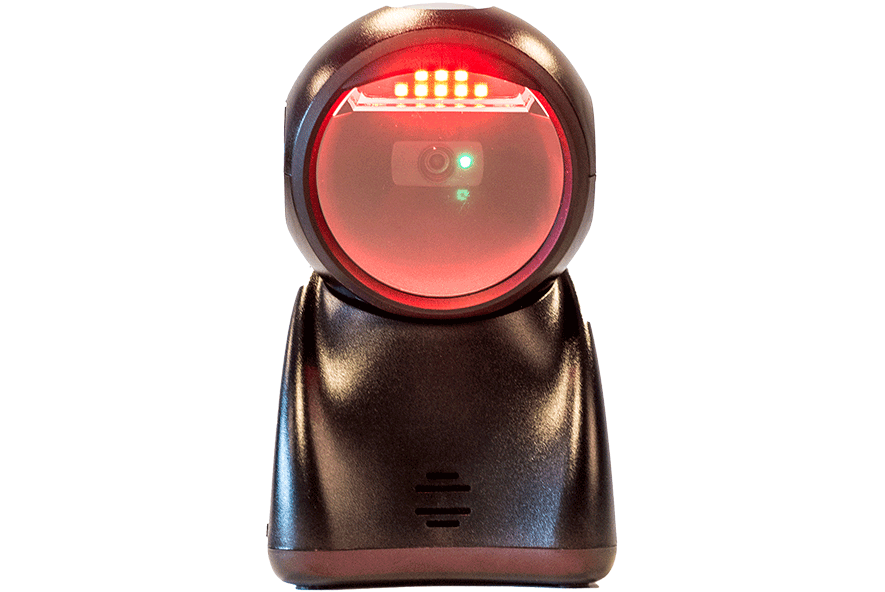

Themis TS-500 scanner is a powerful and compact presentation scanner, offering fast recognition of 1D and 2D barcodes/images from paper labels or electronic screens. It’s design is ideal in constrained space environment supported by an adjustable scanner head, but it also allows handheld operation due to it’s ergonomic finishing grip. Image auto-induction function reduces power consumption and subsequent core component abrasion.
Providing multiple interfaces allow easy integration into POS applications. The bar-code scanning is supported by a “green aimer”, bi-color LED indicator and an acustic sound. All this provides a convenient and comfortable scanning experience.
Item |
TS-500 |
||
|---|---|---|---|
| Dimensions | 95mm (W) x 157mm (D) x 93mm (H) | ||
| Weight | 298.5g w/o cable | ||
| Input Voltage | 5V DC ± 0.25V | ||
| Power Requirement | Operating: 350mA
Standby: 135mA |
||
| Interface | RS232, USB HID/virt. COM, PS/2 | ||
| Environment | Operating: Storage: Temperature: -22°C ~ +55°C -20°C ~ +75°C Humidity: 5% ~ 95% 5% ~ 95% |
||
| Drop Resistance | Multiple drops of 1.5m to concrete | ||
| IP-Class | IP52 | ||
| Barcode Types | all major 1D, GS1 DataBar, 2D | ||
| Scan Rate | 1280 x 800 pixel area image
60 frames/sec. |
||
| Reading Indicator | Beeper, LED | ||
| Scanning Angle | horizontal: 64°, vertical 44°
± 50°, ± 60°, ± 360° (skew, pitch, roll) |
||
|
Depth of Field |
4 mil Code 39 15 – 55mm
3 mil UPC 0 – 180mm 20 mil Code 39 0 – 280mm 6.7 mil PDF 417 15 – 70mm 10 mil QR 10 – 40mm 20 mil QR 0 – 140mm |
||
| Light Source | — | ||
| Cable | 2m straight, RJ45 connector, field replaceable | ||
| Certification | CE, LVD | ||
| Options | USB, PS/2, RS-232 interface selectable | ||
| Accessories | n/a | ||
| Color | Gray | ||
