Partnertech RP-100 Thermal Reciept Printer

The RP-100-300 II is a particularly fast receipt printer with a printing rate up to 300 mm/s at a resolution of 203 dpi. The compact size and integrated wall mounting make this dependable model absolutely ideal for many applications. A wide range of I/O Serial+Ethernet+USB port allows easy installation and simple integration to various POS solutions.

ESC/POS & STAR command sets compatible

Direct thermal line and 203 dpi

Supports serial, parallel and Ethernet connections

Built-in WebConfig page, makes Ethernet setting easy to use through IE

Supports two-dimensional barcode printing function

Standard GB18030 simplified / traditional Chinese characters library

Large data buffer

Characters can be enlarged, bold, underlined; character line spacing can be adjusted

Supports different density bitmap and graphics printing

Supports network printing status monitoring

Windows, Linux and OPOS drivers available

Item RP-100-300 II
Printing   Print method   Direct thermal line
Print width   72-64mm
Dot density   576-512dot/line
Resolution   203dpi
Print speed   300mm/s

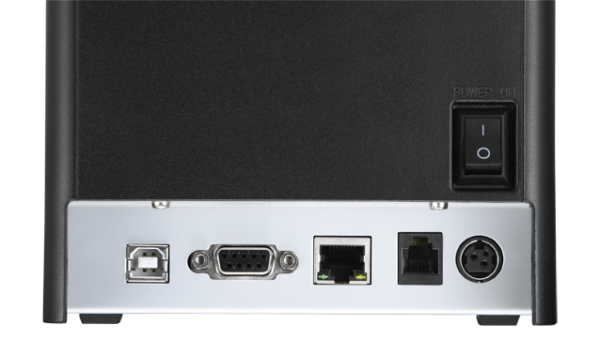

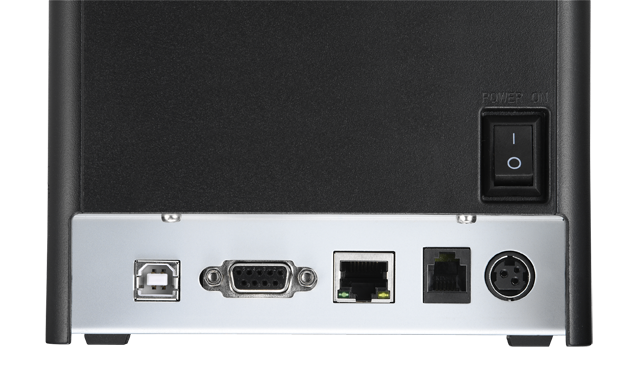

Interface   Serial+Ethernet+USB
Paper diameter   83mm
Paper width   80mm
Line space   3.75mm(can be adjusted)
Sensor   Paper End, Cover Open, Paper Cut
Character Size   ANK Font Font A: 12x24dots Font B: 9x17dots
Simplified/Traditional Chinese Character: 24x24dots
Code page   PC437/Katakana/PC850/PC860/PC863/PC865/
West Europe/Greek/Hebrew/East Europe/Iran/
WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/
PT151,1251/PC737/WPC1257/Thai Vietnam/PC864/
PC1001
Barcode mode   UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/
ITF/CODABAR/CODE93/CODE128/QRCODE
Fonts support   English, Simple Chinese, Traditional Chinese,
Korean, Japanese
Buffer   Data   128K bytes
NV Flash   256K bytes
Power   Cashdrawer out   DC 24V/1A
Power supply   AC 110V/220V,50 ~ 60Hz,DC 12V/3A
Physical   Weight   1.25kg
properties   Dimension   180*139*128mm
Environment   Work environment   Temperature:5-45°C,Humidity:10 ~ 80%
Storage environment   Temperature:-10 ~ 50°C,Humidity:10 ~ 90%
Reliability   Tph life   150km
Auto cutter   1 million cuts
Cutter Method   Partial cut (Guillotine)
Certification   CE, FCC,CB
