| Item | SP-1060 IoT Ready | SP-1060 IoTAdvanced | SP-1060K IoT Advanced | |
| CPU | 6th Generation Sky Lake –
H110 Chipset Celeron G3900TE (2.3GHz, Dual Core, 2M Cache) i3-6100TE (2.7GHz, Dual Core, 4M Cache) |
6th Generation Sky Lake –
Q170 Chipset i5-6500TE (3.3GHz, Quad Core, 4M Cache) i7-6700TE (3.4GHz, Quad Core, 8M Cache) |
7th Generation Kaby Lake –
Q170 Chipset i3-7101TE (3.9GHz, Dual Core, 3M Cache) i5-7500T (3.3GHz, Quad Core, 6M Cache) i7-7700T (3.8GHz, Quad Core, 8M Cache) |
|
| LCD | 15” Active TFT color LCD, resolution 1024 x 768, LED backlight | |||
| Touch | Projected Capacitive Touch (Multi touch) | |||
| Memory | DDR4 SODIMM (2133 MHz), 2x Memory, Standard Spec: 4GB, 8GB, 16GB
(Support up to 32GB) |
|||
| Storage | Internal 2.5” SATA BAY x 1 at Stand | |||
| Internal 2.5” SATA BAY x 1 at Panel PC | ||||
| HDD Standard: 500 GB x 1 (default) | ||||
| SSD Standard Selection: 32 GB / 64 GB / 128 GB | ||||
| External I/O Interface
|
2 * Serial ports, RS232 (DB9), RI/5V/12V selection by BIOS (COM1, COM2) | |||
| 2 * Serial ports, RS232 (RJ45), RI/5V/12V selection by JP (COM3, COM4) | ||||
| 1 * DB-15 VGA port | ||||
| 1 * RJ11 port supports 2 cash drawer with 24V | ||||
| 1 * DC+12V out | ||||
| 4 * USB 3.0, 2*USB 2.0 | ||||
| 1 * DC +12V input power-jack | ||||
| 1 * Audio (1 * Line-out ) | ||||
| 1 * 3W Speaker | ||||
| 2 * LAN IEEE 802.3 10/100/1000 Gigabit Ethernet | ||||
| 1 * DB-15 VGA port, 1*HDMI
(supports 1 VGA or 1 HDMI monitor) |
1*DB-15 VGA, 1*HDMI
(supports two external monitors) |
|||
| External I/O Options | Powered USB 12V x1 & 24V x1 (Optional) | |||
| Parallel Port (Optional) | ||||
| Expansion Slot | 1 * Mini-PCIe slot | |||
| RAID Function | N/A | On-Board | ||
| Intel AMT Support | N/A | Yes | ||
| Optional 2nd Displays | Customer display (2 x 20 VFD) / 7″ LCD Monitor / 11.6″ LCD Monitor / 15″ LCD Monitor | |||
| Optional Peripheral | 1.Three track encryption capable magnetic card reader (MSR)
2.MSR + chip card reader + fingerprint scanner 3.MSR + chip card reader + RFID 4.MSR + chip card reader + i-Button 5.32-key programmable keyboard (Support Win 7 only) |
|||
| Optional WiFi | Mini-PCIe interface card: IEEE 802.11 b/g/n | |||
| Dimensions | Physical: 360mm (W) x 237mm (D) x 335mm (H) | |||
| Adaptor | AC-In 100~240V / DC-Out 12V, 120W (Optional 180W for Powered USB) | |||
| Cable | RS-232 RJ-45 converts to RS-232 DB-9 (2 x Cables) | |||
| OS | Window 7, POS Ready7, Window 8.1, Windows 8.1 Industry Pro Retail , Windows 10 | Windows 10 (64 bit) | ||
| Linux (Ubuntu) | N/A | |||
| Reliability | System Operating Temperature: 0~40 degree | |||
| System Humidity: 15% ~ 80% | ||||
| Storage Temperature: -20~60 degree | ||||

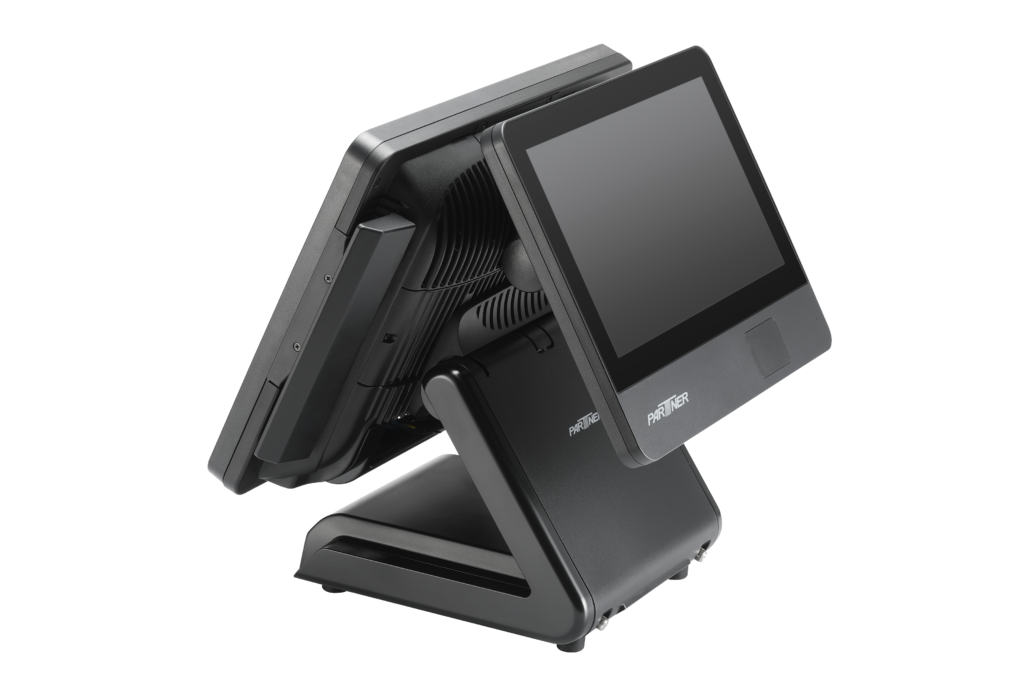

SP-1060
£1,000.00 – £1,200.00 ex VAT
Availability:
In stock
The SP-1060 POS terminal gives forward-thinking businesses options for speed, endurance, and performance now as well as the ability to add IoT solutions and new applications as technology advances and consumer trends change.
Downloads
Datasheets
| Operating System | None, Windows 7, Windows 10 |
|---|---|
| MSR Reader Options | None, MSR, MSR & Finger Print |
